Multiple Protocols USB Desktop RFID Reader Writer Keyboard Emulation Output UID

Name: Multiple Protocols USB Desktop RFID Reader Writer Keyboard Emulation Output UID
Brand: Andea Electronics
Price: 1 USD

China Multiple Protocols USB Desktop RFID Reader Writer Keyboard Emulation Output UID wholesale

Brand Name : Andea Electronics

Model Number : RL863

Pla of Origin : CHINA

MOQ : 1 Piece

Pri : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Delivery Time : 3~5 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

Place of Origin : CHINA

Operating Frequency : 13.56 MHz

Anti-collison Algorithm : Support

Working Voltage : DC 5V

ISO 15693 : 16cm

ISO 14443A : 10cm

ISO 18000-3M3 : 6cm

Contact Now

HF Multiple Protocols USB RFID Reader Writer Keyboard Emulation Output UID

Product Introduction:

This HF Micro Power RFID Reader Writer supports transponders according to ISO 14443A/B, ISO 15693, ISO 18000-3M1 and ISO 18000-3M3. The reader has been integrated with an built-in antenna. RL863 is high capability, anti-jamming, small size and good quality, which brings more convenience. With its anti-collision function, the reader is able to read up to multiple transponders simultaneously.

Product Features:

NFC Forum Type 1~5 tag RFID reader and writer
MIFARE tag RFID reader and writer
ICODE tag RFID reader and writer
ILT tag RFID reader and writer
ST ISO14443B RFID reader and writer
USB plug and play design, no need to install drive program

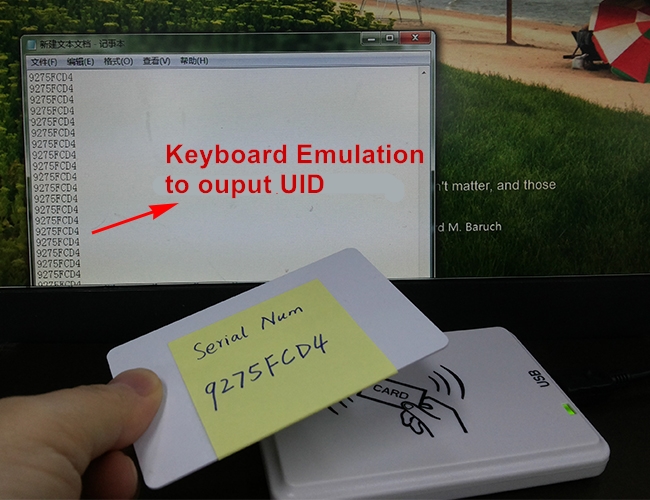

Support keyboard emulation
Environmental ABS housing material

Technical Specification
Model		RL863
Operating Frequency		13.56 MHz (±7KHz)
Compatible Protocols		ISO15693, ISO 14443A/B, ISO 18000-3M3 and NFC
Compatible Tags		NFC Forum Type 1: Innovision Topaz512 NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x. NFC Forum Type 3: Sony Felica [only support Polling] NFC Forum Type 4: Mifare DESFire EV1 NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini ISO18000-3M3 Type: ICODE ILT ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication Interface		USB
Reading Range	ISO 15693	16cm
	ISO 14443A	10cm
	ISO 18000-3M3	6cm
Keyboard Emulation		Support
Anti-collision Algorithm		Support
Working Voltage		DC 5V (USB power supply)
Max Power Consumption		0.65W
Dimension		1057010mm
Weight		53g

Multiple Protocols USB Desktop RFID Reader Writer Keyboard Emulation Output UID

Product Application:

RFID tag encoding, read and write data in the tag block, etc.

Product Tags:

rfid desktop reader

13.56 mhz rfid reader writer

Multiple Protocols USB Desktop RFID Reader Writer Keyboard Emulation Output UID Images
